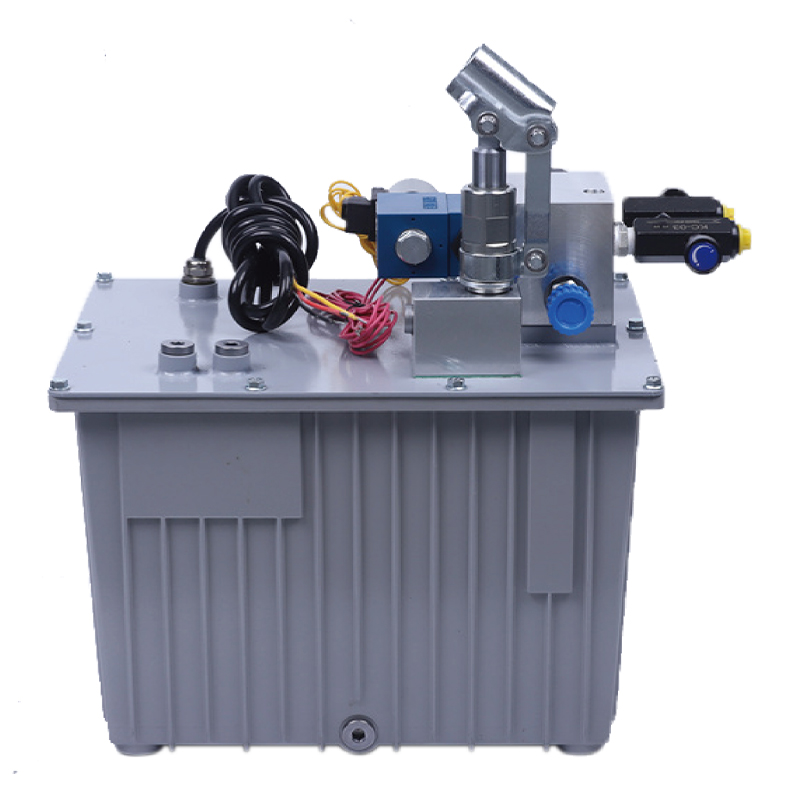

DC single acting power unit

MAIN FEATURES INCLUDE:
- High-pressure gear pump: The DC single acting power unit is equipped with a high-pressure gear pump that can provide strong and stable hydraulic flow. Whether the lifting platform is rising or falling, the gear pump can ensure smooth and continuous power output.
- Permanent magnet DC motor: The permanent magnet DC motor provides efficient power output, while having low energy consumption and long service life. The motor rotates forward to achieve the lifting platform rising, and reverses to control the descent. The operation is simple and reliable, avoiding the complexity of the solenoid valve.
- Solenoid valve controls the descent: The platform's descent function is achieved through the solenoid valve, ensuring precise and smooth operation during the descent process. The solenoid valve can be opened and closed accurately when needed, adjusting the pressure of the hydraulic system to avoid vibration or safety hazards caused by too fast descent.
- Pressure compensation throttle valve: Built-in pressure compensation throttle valve is used to adjust the speed of descent. Through the precise control of the compensation valve, the descent process of the hydraulic lift is ensured to be stable, and there will be no rapid descent due to pressure fluctuations, which improves the safety and comfort of the operation.
- Motor power and voltage selection: Provide 0.8-1.6KW motor power selection, support 12V and 24V voltage configuration, users can choose the appropriate motor power and voltage version according to the needs of the equipment to ensure the efficient operation of the system.

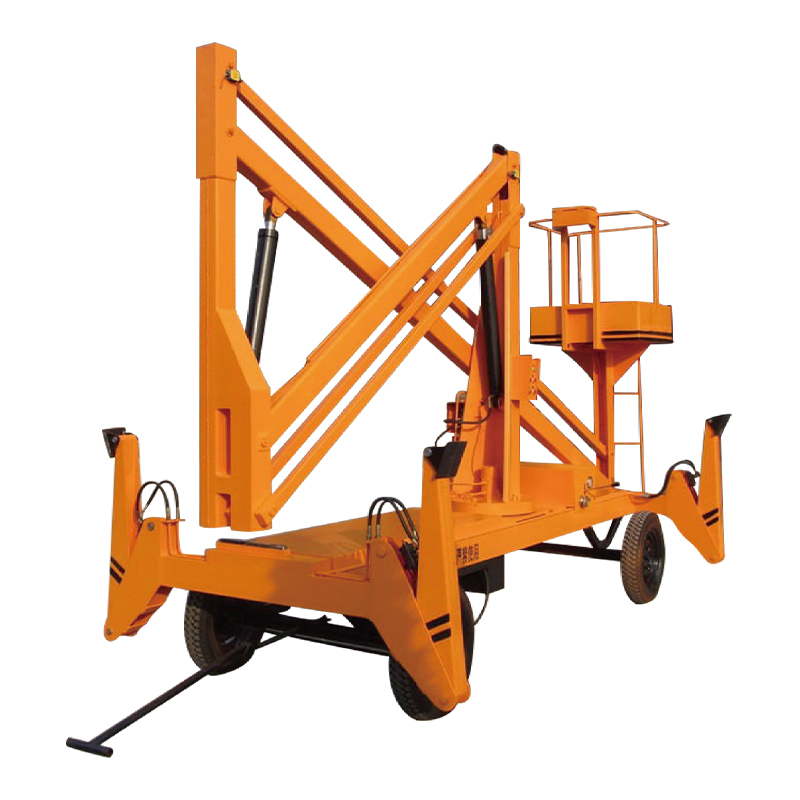

- Wide application: This DC single acting power unit is widely used in mobile hydraulic lifts, storage equipment, walking platforms, etc., and can provide stable hydraulic power for various industrial applications.

This DC single acting power unit has efficient and stable hydraulic control and compact design, which is an ideal power choice for equipment such as mobile hydraulic lifts. Whether it is the precise control of lifting operations or the large space restrictions of equipment, this DC single acting power unit can ensure the efficient operation and safety of the equipment.

SPECIAL NOTES

The power unit is an S3 working system and can not operate continuously. It starts in 10 seconds and stops in 90 seconds.
Before installation, ensure that hydraulic components such as the oil cylinder, oil pipe, and joint are free of impurities.
The viscosity of hydraulic oil shall be 15 - 68st. No. 46 anti-wear hydraulic oil is recommended in summer, and No. 32 low-temperature hydraulic oil is recommended in winter.
After starting the operating system for the first time, check whether the oil in the oil tank is sufficient, generally 2/ 3 of the oil tank.
After the system is used for the first 100 hours, the hydraulic oil shall be replaced, and then the hydraulic oil shall be replaced every 3000 hours.

SCHEMATIC DIAGRAM

SPECIFICATIONS

Note: if you need system parameters such as pump, pressure and motor power with different flow, please contact our salesman.
