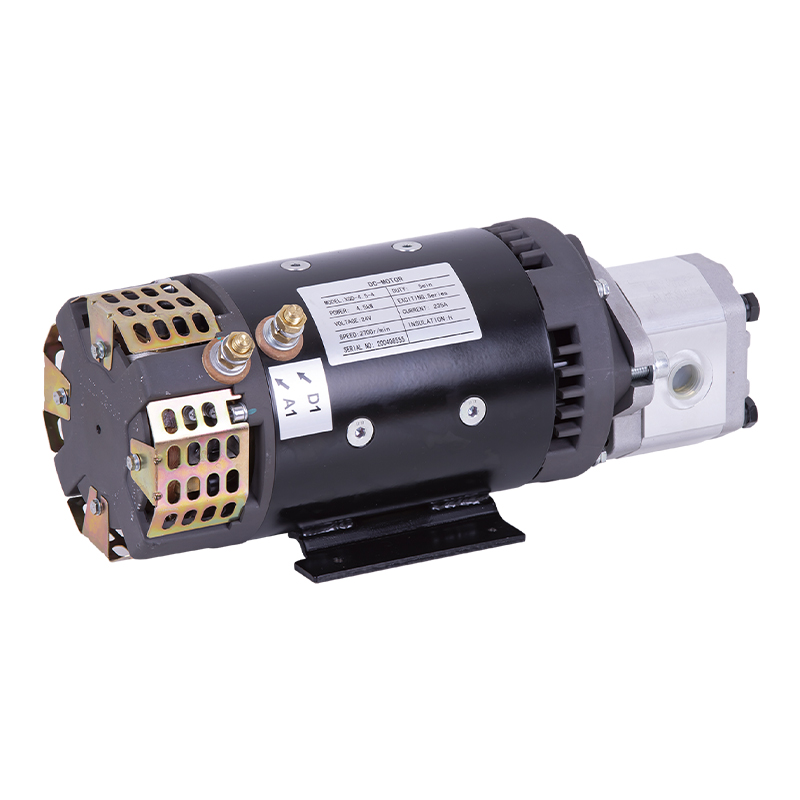

Aerial vehicle electric pump

What core role does the electric pump play in the hydraulic system of the aerial photography vehicle?
•The electric pump is the core component of the hydraulic power unit of the aerial photography vehicle, responsible for efficiently converting the on-board electrical energy into hydraulic energy. Its performance directly determines the response speed, positioning accuracy and running stability of key actions such as gimbal lifting, bracket leveling, and sensor hatch opening and closing.
•The aerial photography operation environment is special, requiring the electric pump to have significant low noise characteristics. Ningbo Panic Hydraulic Technology Co., Ltd. gives priority to fluid dynamics optimization and precision component matching in product design to minimize operating noise and avoid interfering with the audio quality of aerial photography collection.
•Lightweight and compact design are key limitations of aerial photography applications. Ningbo Panic uses mature manufacturing experience to reduce the weight and volume of the pump body while ensuring output power by optimizing the internal flow channel, selecting high-strength and lightweight materials and integrated design, thereby improving the payload capacity of the aerial photography vehicle.

What are the core technical elements of the electric pump that supports the reliability of aerial photography?
•High-efficiency permanent magnet brushless motor: As a power source, the core lies in the combination of low energy consumption, high power density and wide speed range performance. Ningbo Panic selects high-quality magnetic steel and copper wire, optimizes electromagnetic design, ensures efficient and stable operation of the motor under the changing working conditions of the aerial vehicle, and reduces battery consumption.
•Precision hydraulic unit integration: including low-pulsation gear pump or vane pump design, precision pressure regulating valve, and low-resistance flow channel. The manufacturing process requires micron-level processing accuracy to ensure the matching clearance and sealing. Ningbo Panic's precision processing capabilities and strict process control (such as first inspection and random inspection of key processes) are the basis for achieving low leakage, low heat generation, and high volumetric efficiency.
•Long-term sealing and thermal management: Seals need to withstand frequent start-stop shocks and wide temperature environments. Ningbo Panic selects customized sealing materials and structures based on application scenarios, and integrates efficient heat dissipation solutions (such as aluminum shell heat dissipation fins and optimized oil circuit circulation) to prevent system overheating from causing performance degradation or failure.
•Intelligent control and interface compatibility: Modern aerial vehicle electric pumps need to integrate pressure sensing, temperature protection, CAN bus or PWM speed control signal interface. Ningbo Panic's R&D team focuses on control logic optimization and interface standardization design to ensure seamless communication and precise response with the flight control system.

What stringent requirements does the manufacturing of aerial vehicle electric pumps put forward for reliability and life?

•Extreme challenges in materials and processes: The application of aviation-grade aluminum alloy housings, high-strength gear/blade materials, and special engineering plastic bearings is the norm. Ningbo Panic strictly controls the inspection of raw materials entering the factory, and relies on high-precision CNC machining centers and heat treatment processes to ensure the wear resistance and long-term dimensional stability of key friction pairs.

•Environmental tolerance verification: Products must pass strict environmental simulation tests covering high and low temperature cycles (-40℃ to +85℃), vibration and shock, and dust and water resistance (IP level). Ningbo Panic relies on its own laboratories or cooperative certification agencies to conduct systematic environmental stress screening to simulate the extreme conditions that aerial photography vehicles may encounter in actual flights.

•Full-process quality traceability guarantee: Reliability comes from every detail of the manufacturing process. Ningbo Panic implements a quality control strategy throughout production: first-piece inspection is carried out after each process to confirm parameters, random inspections are carried out during production to monitor process stability, and 100% full inspection (covering performance testing, appearance, leakage detection, etc.) is carried out at the finished product stage according to international standards (such as ISO, DIN) for specific aerial photography applications and customer customization specifications to ensure that each delivered electric pump meets the design life indicators.

How can manufacturers ensure that the delivered electric pumps meet the specific quality standards of aerial photography applications?

•Demand-driven customized quality control system: Quality benchmarks are not static. Ningbo Panic's international business department deeply understands the differentiated requirements of different aerial photography vehicle manufacturers (OEMs) for noise levels, energy efficiency, protection levels, and communication protocols, and accurately converts this into internal inspection standards and test procedures.

•Strict testing beyond national standards: The full inspection of finished products not only meets basic international standards, but also conducts special tests on aerial photography load characteristics (such as fatigue tests simulating frequent start-stop and instantaneous pressure shock tests). Test data is fully recorded and traceable.
•Design-manufacturing-quality inspection closed loop iteration: Quality inspection data is fed back to the design and production links in real time. Ningbo Panic continuously optimizes design tolerances, improves assembly processes, and upgrades detection methods through in-depth analysis of quality data, forming a positive cycle of reliability improvement.

What are the key points of preventive maintenance and fault diagnosis of electric pumps in the operation and maintenance of aerial photography vehicles?

•Core monitoring parameters: Operating current fluctuations, abnormal increase in housing temperature, unstable or decreased output pressure, abnormal noise/vibration, and signs of external leakage are key signals for judging the health status of electric pumps. Regular monitoring of these parameters is essential to prevent sudden failures.

•Key items of maintenance procedures: According to the technical manual provided by Ningbo Panic, regularly check and tighten the electrical connection interface to prevent poor contact or sparking, confirm the cleanliness and oil level of the hydraulic oil (if it is an external oil tank), check the sealing and fixing status of the inlet and outlet oil pipes, and clean the dust and oil on the heat dissipation surface to ensure heat dissipation efficiency.

•Fault diagnosis logic: When an abnormality occurs, the first step is to check whether the power supply voltage stability and controller signal output are normal. After eliminating external factors, the root cause of the problem (such as motor winding, bearing wear, internal valve jamming, seal failure) is initially located by combining pressure testing, current measurement, auscultation and other means. Early detection and replacement of damaged components with Ningbo Panic original spare parts is the most effective way to restore system reliability.

Ningbo Panic Hydraulic Technology Co., Ltd.: Focusing on precision manufacturing of aerial power
As a professional hydraulic component manufacturer integrating R&D, manufacturing and international trade, Ningbo Panic integrates the cutting-edge technology, extreme reliability and lightweight requirements required for aerial vehicle electric pumps into every link from raw material selection, precision machining, process quality control (first inspection, random inspection) to finished product full inspection (strictly following customer specifications and international standards). With its vertically integrated manufacturing system and trade capabilities that directly reach the global market, the company is committed to providing high-performance electric pump solutions that are powerful, quiet and durable for the aerial vehicle field.
