Silent power unit of hydraulic cargo elevator

CORE ADVANTAGES:

- Low-noise operation: Through the optimized oil-immersed motor and vane pump design, the operating noise is significantly reduced, providing users with a quieter working environment.
- Compact integration: The high-pressure vane pump, AC oil-immersed motor, valve block, cartridge valve and oil tank are integrated into one, effectively reducing space occupancy and facilitating installation and maintenance.
- High reliability: The oil-immersed motor design has excellent waterproof performance, ensuring long-term and stable operation of the equipment in a humid environment.
- Intelligent reversing control: The cylinder reversing is realized by the solenoid valve, and supports the combined use of multiple hydraulic locks and speed control valves.
- High-power motor configuration: The motor power range is 2.2-5.5KW, and the voltage is optional from 220-380V to adapt to different load requirements and power supply conditions.
- Double-acting function: Through the solenoid valve reversing, the cylinder can achieve bidirectional action to meet the lifting needs of hydraulic cargo elevators.

APPLICATION SCENARIOS:

This silent power unit of hydraulic cargo elevator is particularly suitable for hydraulic cargo elevators and other lifting equipment with strict noise requirements due to its low noise, compact structure and high reliability. Specific applications include but are not limited to:

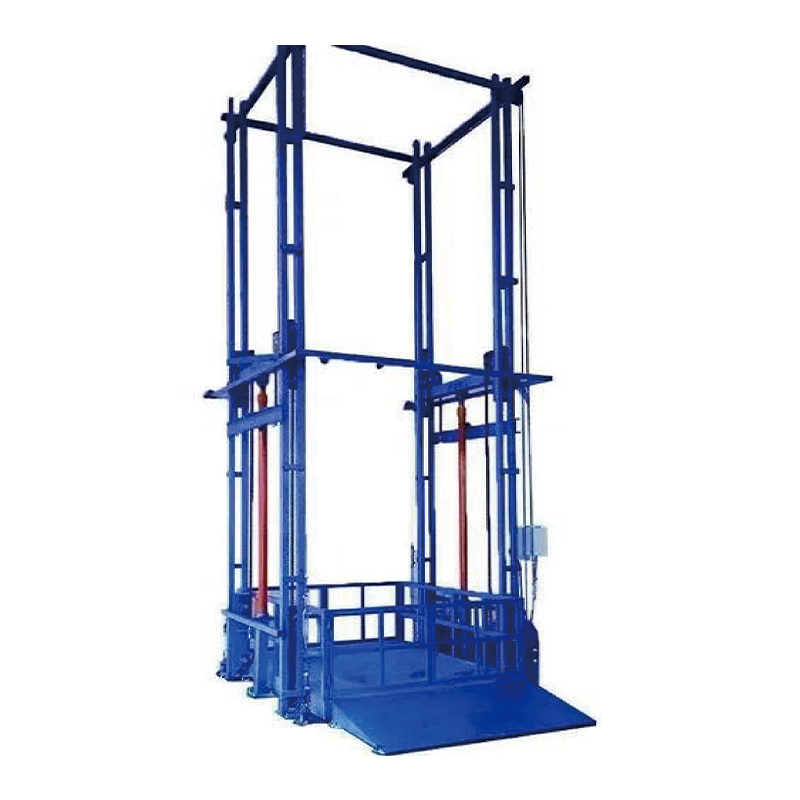

- Hydraulic cargo elevator: Provide stable bidirectional power support to ensure the stability and safety of cargo lifting.
- Warehousing and logistics: such as automatic stereoscopic warehouses, lifting platforms, etc., to improve work efficiency and reduce noise interference.
- Construction: such as construction elevators, material hoists, etc., to enhance the reliability and durability of equipment and meet the needs of complex working conditions.

This silent power unit of hydraulic cargo elevator provides an ideal hydraulic power solution for hydraulic cargo elevators and other lifting equipment with its ultra-low noise, compact structure and high reliability. Its intelligent solenoid valve reversing system and high-power motor configuration enable it to adapt to a wider range of application scenarios and improve overall performance and user experience. Whether it is used indoors or outdoors, it ensures quiet, stable and efficient operation.

SPECIAL NOTES

The power unit is an S3 working system and can not operate continuously. It starts in 10 seconds and stops in 90 seconds.

Before installation, ensure that hydraulic components such as the oil cylinder, oil pipe, and joint are free of impurities.

The viscosity of hydraulic oil shall be 15 - 68st. No. 46 anti-wear hydraulic oil is recommended in summer, and No. 32 low-temperature hydraulic oil is recommended in winter.

After starting the operating system for the first time, check whether the oil in the oil tank is sufficient, generally 2 / 3 of the oil tank.

After the system is used for the first 100 hours, the hydraulic oil shall be replaced, and then the hydraulic oil shall be replaced every 3000 hours.

SCHEMATIC DIAGRAM

SPECIFICATIONS

Note: if you need system parameters such as pump, pressure and motor power with different flow, please contact our salesman.
