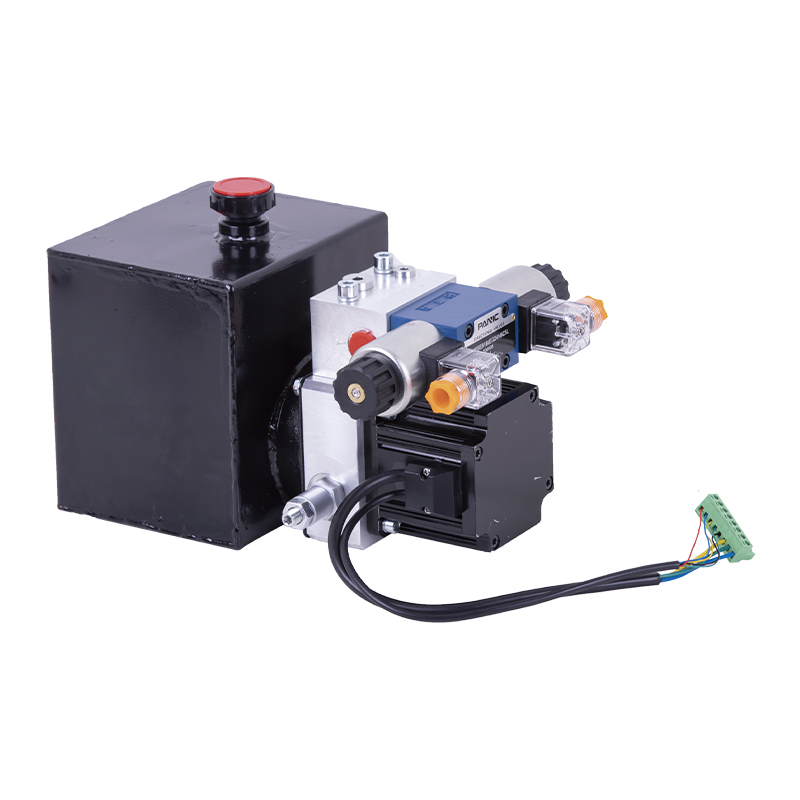

Brushless motor hydraulic power unit

MAIN FEATURES INCLUDE:

- Brushless DC motor: The hydraulic unit uses a DC brushless motor to provide higher efficiency, long life and lower maintenance requirements. Compared with brushed motors, brushless motors have lower wear and better energy efficiency conversion, suitable for long-term operation and high-frequency operation.
- Motor and solenoid valve control: Hydraulic lifting is controlled by precise coordination of motor and solenoid valve. The solenoid valve realizes the up and down movement of the hydraulic cylinder, ensuring a smooth and precise lifting process. The lifting action can be controlled in one direction or two directions through the solenoid valve, which is simple and reliable to operate.
- Optional motor power and voltage: The motor power range is from 0.1KW to 4KW, and the appropriate power size can be selected according to the specific application. In addition, it supports a voltage range of 12V to 72V, which meets the needs of equipment with different power requirements and has stronger adaptability.
- Multi-speed control function: During the descent process, the hydraulic power unit provides single-speed, dual-speed or proportional speed regulation options. The proportional speed regulation function allows the descent speed of the hydraulic cylinder to be finely adjusted, providing higher control accuracy and ensuring that the equipment can safely and smoothly perform the deceleration operation.
- External and internal drive configuration: According to the different needs of the equipment, the hydraulic unit can be externally driven or internally driven. The external drive is suitable for equipment with a large space or a separate power system, while the internal drive is suitable for equipment that requires a compact design, saving space while maintaining strong hydraulic power.
- Compact and efficient design: This brushless motor hydraulic power unit has a compact design, small size, and is easy to install, making it a perfect fit even in equipment with limited space. At the same time, due to the efficient performance of the brushless motor and high-pressure gear pump, it can ensure that the equipment provides excellent hydraulic power in a small size.
- Wide application: The brushless motor hydraulic power unit can be widely used in automation equipment, hydraulic lifting platforms, storage and logistics equipment, garden machinery and other fields, especially for applications that require precise speed regulation and efficient drive.

This brushless motor hydraulic power unit is highly integrated and has many advantages such as brushless motor drive, precision hydraulic control, and adjustable speed descent. It adapts to a variety of voltage and power requirements and provides multi-speed control options, which can provide stable and efficient hydraulic support in various industrial and mechanical equipment. Whether it is an external drive or an internal drive, it can provide flexible solutions for different applications.

SPECIAL NOTES

The power unit is S3 working system and can not operate continuously. It starts in 10 seconds and stops in 90 seconds.

Before installation, ensure that hydraulic components such as the oil cylinder, oil pipe, and joint are free of impurities.

The viscosity of hydraulic oil shall be 15 - 68st. No. 46 anti-wear hydraulic oil is recommended in summer, and No. 32 low-temperature hydraulic oil is recommended in winter.

After starting the operating system for the first time, check whether the oil in the oil tank is sufficient, generally 2 / 3 of the oil tank.

After the system is used for the first 100 hours, the hydraulic oil shall be replaced, and then the hydraulic oil shall be replaced every 3000 hours.

SCHEMATIC DIAGRAM

SPECIFICATIONS

Note: if you need system parameters such as pump, pressure and motor power with different flow, please contact our salesman.
