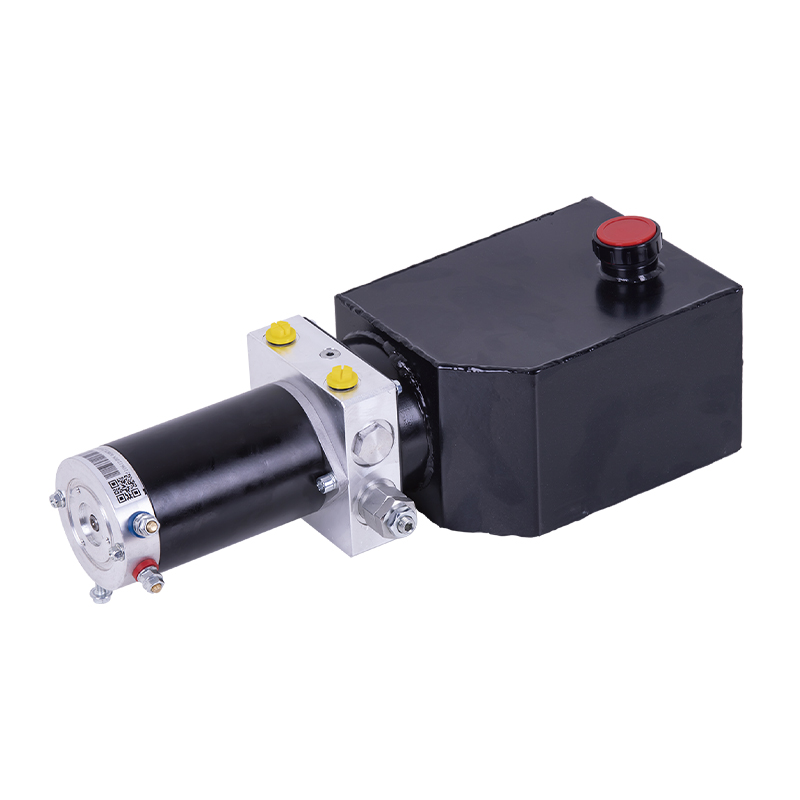

DC bidirectional pump power unit

MAIN FEATURES INCLUDE:

- Bidirectional gear pump: The DC bidirectional pump power unit uses a bidirectional gear pump to provide stable and efficient hydraulic power output. The bidirectional design enables the system to achieve bidirectional control of hydraulic flow, adapt to the lifting or walking operations of the equipment under different working conditions, and ensure the smooth operation of the system.
- Permanent magnet DC motor: Equipped with a high-efficiency permanent magnet DC motor, it has low energy consumption and a long service life. The forward and reverse function of the motor realizes the reversal of the hydraulic system, reduces the dependence on the solenoid valve, further simplifies the system structure, and improves reliability.
- Simplified reversing control: The reversal of the hydraulic system is achieved by relying on the forward and reverse rotation of the motor, eliminating the design of the traditional solenoid valve. It reduces the complexity of the system, effectively saves space, and is suitable for equipment with small space or special requirements for compact structure.
- Compact structure: The overall design of this DC bidirectional pump power unit is very compact and suitable for use in mobile vehicles, lifting platforms and other equipment. The streamlined component configuration can provide sufficient power support in a limited space and maximize the working efficiency of the equipment.
- Stability and reliability: The overall structure of the DC bidirectional pump power unit is stable, the performance is stable, and it is not prone to failure. Its design allows the equipment to maintain stable operation during long-term and high-frequency use, which is very suitable for high-demand industrial or mobile equipment applications.
- Voltage selection: The system provides a variety of voltage configurations from 12V to 48V, and users can choose the appropriate voltage version according to actual needs. Whether it is a small device or a large device, you can find the right voltage to ensure the efficient operation of the system.

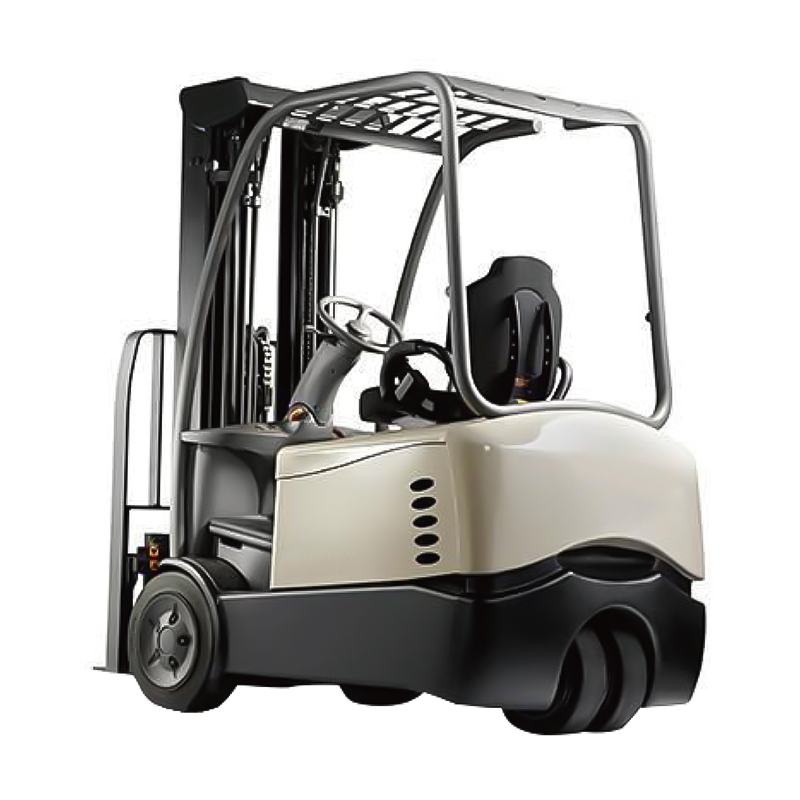

- Wide application: This DC bidirectional pump power unit is widely used in various hydraulic drive systems such as mobile vehicles, lifting platforms, and logistics equipment due to its high efficiency and compactness. It performs particularly well in application scenarios that require fast switching and small space requirements.

SPECIAL NOTES

The power unit is an S3 working system and can not operate continuously.
It starts in 10 seconds and stops in 90 seconds.
Before installation, ensure that hydraulic components such as the oil cylinder, oil pipe, and joint are free of impurities.
The viscosity of hydraulic oil shall be 15 - 68st. No. 46 anti-wear hydraulic oil is recommended in summer, and No. 32 low-temperature hydraulic oil is recommended in winter.
After starting the operating system for the first time, check whether the oil in the oil tank is sufficient, generally 2 / 3 of the oil tank.
After the system is used for the first 100 hours, the hydraulic oil shall be replaced, and then the hydraulic oil shall be replaced every 3000 hours.

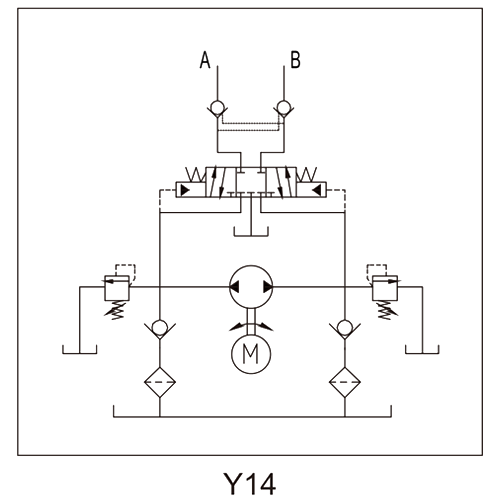

SCHEMATIC DIAGRAM

SPECIFICATIONS

Note: if you need system parameters such as pump, pressure, and motor power with different flow, please contact our salesman.
