Mobile lifting platform power unit

MAIN FEATURES INCLUDE:

- High-pressure gear pump: The high-pressure gear pump is used to provide strong and stable hydraulic power for the hydraulic lift to ensure smooth lifting process. The gear pump has strong durability and efficient hydraulic flow output, which can adapt to the working requirements under various loads.
- Permanent magnet DC motor: Equipped with a permanent magnet DC motor, it has the characteristics of high efficiency and low energy consumption. The permanent magnet motor can not only start quickly and provide sufficient power, but also maintain stable operation for a long time, which is very suitable for high-frequency use of mobile hydraulic lifts.
- Cartridge valve and center valve block: The cartridge valve and center valve block are integrated in the hydraulic system, which can accurately control the hydraulic flow and pressure, and realize the smooth lifting and safe operation of the lift. The solenoid valve controls the action during the lifting process, realizing precise up and down motion control.
- Pressure-compensated throttle valve: The built-in pressure-compensated throttle valve can adjust the descent speed, effectively control the descent process of the hydraulic lifting platform, avoid vibration or instability caused by too fast descent, and ensure a smooth and safe operation process.
- Lightweight design: The mobile lifting platform power unit is lightweight and compact, making it easy to install in a limited space. It is especially suitable for mobile hydraulic lifting platforms with compact space, facilitating the flexible layout of vehicles or equipment.
- Motor and voltage selection: 0.8-1.6KW motor power is available, supporting 12V and 24V voltage configurations. Users can choose the most suitable power and voltage according to their needs to ensure efficient operation of the system.
- Small installation space: The mobile lifting platform power unit is compact in design and suitable for limited installation space. It can effectively reduce the occupied space and improve the overall efficiency of the equipment, especially for equipment environments with small space.

This mobile lifting platform power unit has high integration and stable performance, and is particularly suitable for mobile hydraulic lifting platforms. It can provide efficient and stable hydraulic drive. It provides reliable support for other hydraulic lifting equipment that requires precise control, such as lifting platforms, loading and unloading vehicles, etc.

SPECIAL NOTES

The power unit is s3 working system and can not operate continuously.
lt starts in 10 seconds and stops in 90 seconds.
Before installation, ensure that hydraulic components such as the oil cylinder, oil pipe and joint are free of impurities.
The viscosity of hydraulic oil shall be 15- 68 st. No. 46 anti-wear hydraulic oilis recommended in summer and No. 32 low temperature hydraulic oil is recommended in winter.
After starting the operating system for the first time, check whether the oil in the oil tank is sufficient, generally 2 / 3 of the oil tank.
After the system is used for the first 100 hours, the hydraulic oil shall be replaced, and then it shall be replaced every 3000 hours.

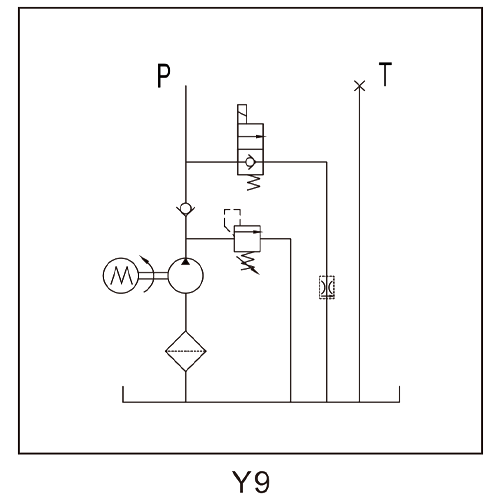

SCHEMATIC DIAGRAM

SPECIFICATIONS

Note: if you need system parameters such as pump, pressure, and motor power with different flow, please contact our salesman.
