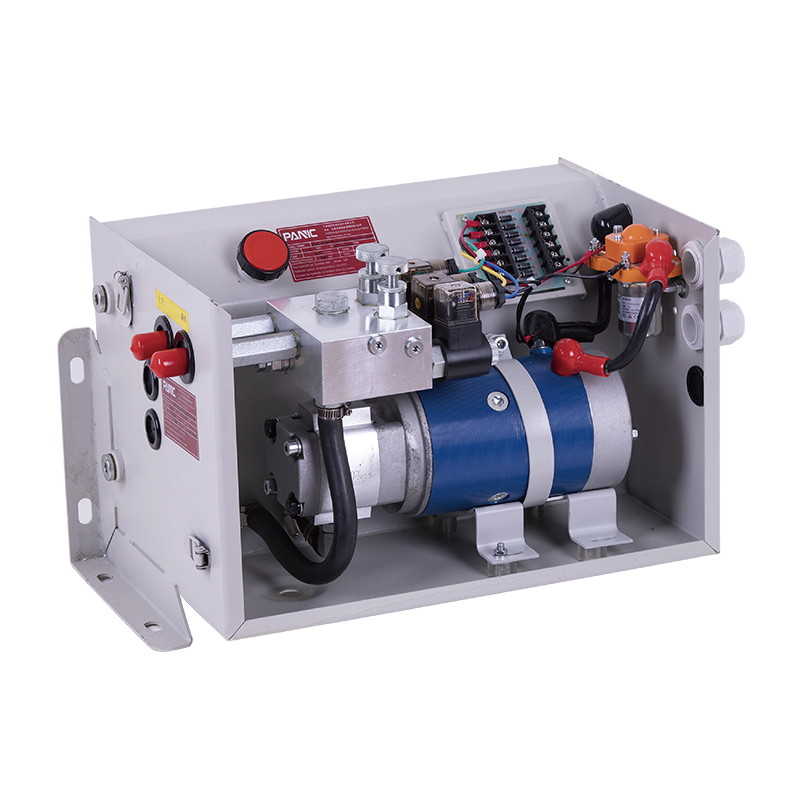

Integrated lifting column power unit

MAIN FEATURES:

- Compact design: All core components are integrated into one, which significantly reduces space occupation and improves the convenience of installation and maintenance.
- Bidirectional pump structure: The lifting action is controlled by the forward and reverse rotation of the motor, avoiding the complexity and potential failure of the traditional solenoid valve reversing.
- Excellent waterproof performance: With IP68 waterproof rating, it can work normally even underwater, especially suitable for outdoor or humid environments.
- Efficient power configuration: Equipped with a 0.35KW AC oil-immersed motor, the voltage range is optional from 220V to 380V, adapting to a variety of power supply conditions to ensure stable operation.

APPLICATION SCENARIOS:

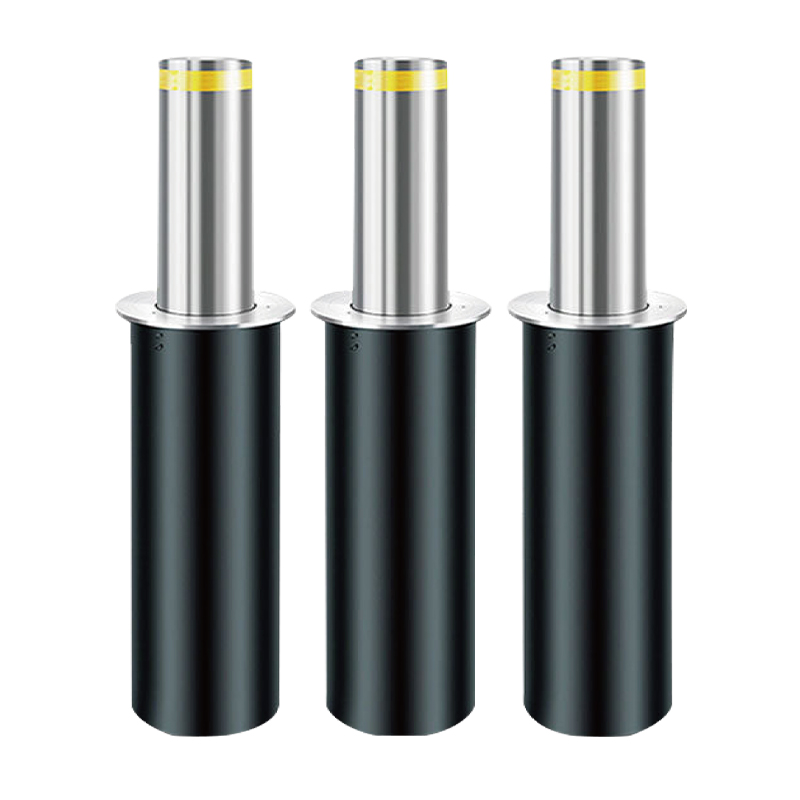

This integrated lifting column power unit is widely used in various occasions that require reliable vertical motion control, such as parking lot entrance and exit control, road safety facilities, industrial access control systems, etc. Its rugged design and excellent waterproof performance make it an ideal choice for harsh environments.

SPECIAL NOTES

The power unit is an S3 working system and can not operate continuously. It starts in 10 seconds and stops in 90 seconds.

Before installation, ensure that hydraulic components such as the oil cylinder, oil pipe, and joint are free of impurities.

The viscosity of hydraulic oil shall be 15 - 68st. No. 46 anti-wear hydraulic oil is recommended in summer, and No. 32 low-temperature hydraulic oil is recommended in winter.

After starting the operating system for the first time, check whether the oil in the oil tank is sufficient, generally 2 / 3 of the oil tank.

After the system is used for the first 100 hours, the hydraulic oil shall be replaced, and then the hydraulic oil shall be replaced every 3000 hours.

SCHEMATIC DIAGRAM

SPECIFICATIONS

Note: if you need system parameters such as pump, pressure, and motor power with different flow, please contact our salesman.
