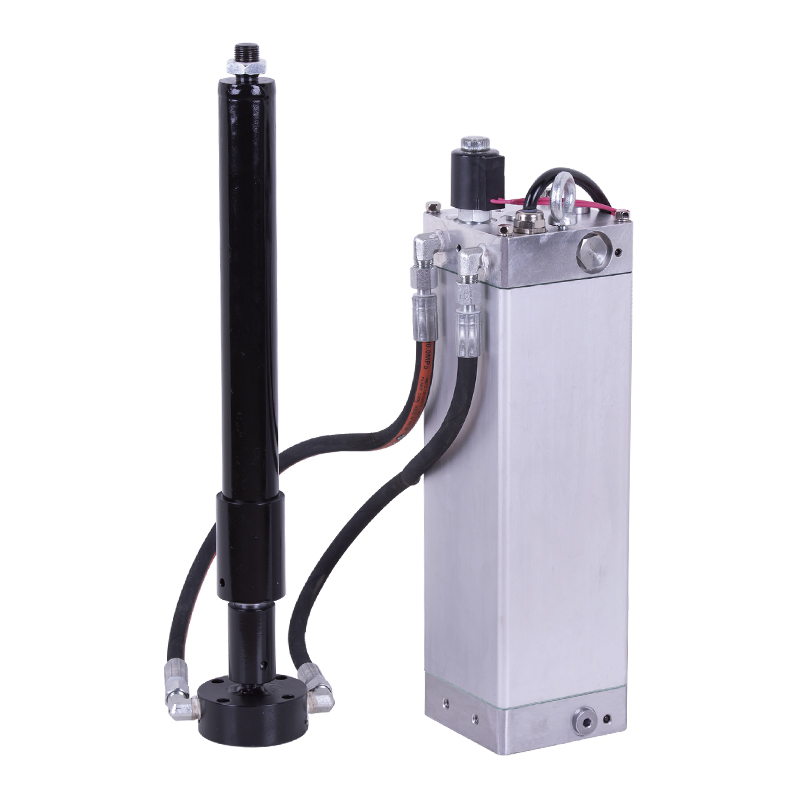

Split multistage cylinder lifting column power unit

CORE ADVANTAGES:

- Compact integration: All key components are integrated into a single module, significantly reducing space occupation and facilitating installation and maintenance.
- Bidirectional pump mechanism: Relying on the forward and reverse rotation of the motor to achieve lifting action, no additional solenoid valve reversing device is required, reducing the complexity of the system.
- Excellent waterproof performance: With IP68 waterproof rating, the equipment can operate normally even underwater

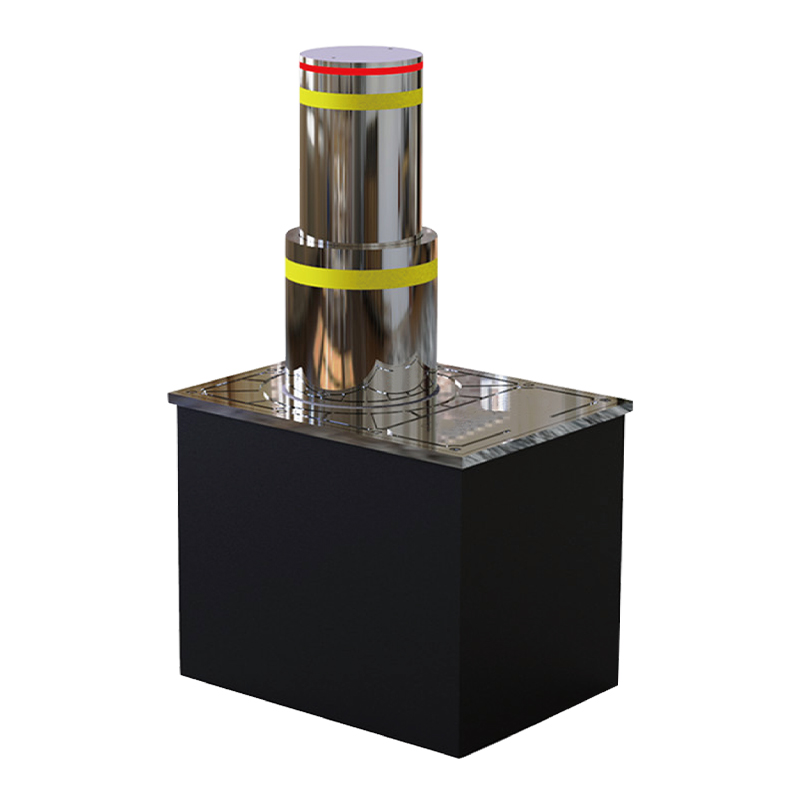

- Split multi-stage cylinder design: The innovative split multi-stage cylinder structure keeps the total height of the lifting column within 500mm, which is suitable for occasions where deep excavation construction is not possible, greatly improving installation flexibility.
- Efficient power configuration: Equipped with a 0.35KW AC oil-immersed motor, supports a voltage range of 220V to 380V, adapts to a variety of power supply conditions, and ensures stable operation.

SPECIAL NOTES

The power unit is an S3 working system and can not operate continuously. It starts in 10 seconds and stops in 90 seconds.

Before installation, ensure that hydraulic components such as the oil cylinder, oil pipe, and joint are free of impurities.

The viscosity of hydraulic oil shall be 15- 68 st. No. 46 anti-wear hydraulic oil is recommended in summer, and No.32 low-temperature hydraulic oil is recommended in winter.

After starting the operating system for the first time, check whether the oil in the oil tank is sufficient, generally 2 / 3 of the oil tank.

After the system is used for the first 100 hours, the hydraulic oil shall be replaced, and then the hydraulic oil shall be replaced every 3000 hours.

SCHEMATIC DIAGRAM

SPECIFICATIONS

Note: if you need system parameters such as pump, pressure, and motor power with different flow, please contact our salesman.
