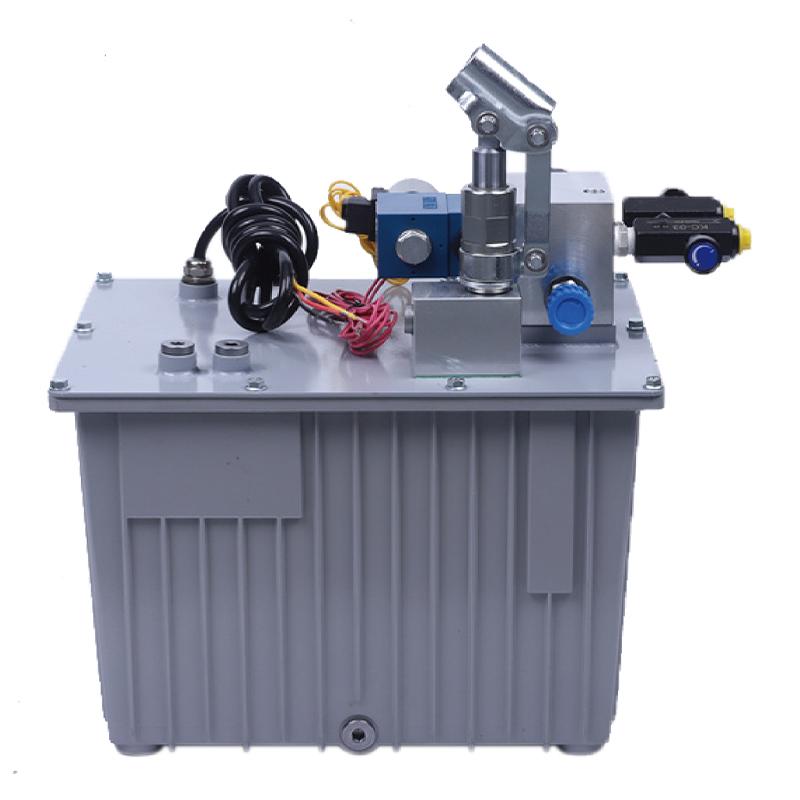

Anti terrorism roadblock power unit

CORE ADVANTAGES:

- Integrated integrated design: All key components are integrated in a single module, which significantly reduces space occupation and facilitates installation and maintenance.
- Oil-immersed motor: The oil-immersed motor design has excellent waterproof performance (IP68) and can work stably for a long time in harsh environments.
- Rapid response mechanism: By using a combined accumulator, it can achieve a rapid rise of one second to meet the rapid response needs in emergency situations.
- Power failure emergency pressure relief function: The built-in power failure emergency pressure relief device can still safely release pressure in the event of a power failure to ensure the safety of equipment and personnel.
- Flexible control method: The rising and falling actions are completed by the motor and solenoid valve working together to ensure accurate and reliable operation.

APPLICATION SCENARIOS:

This anti-terrorism roadblock power unit is widely used in places that require high security and rapid response, such as government agencies, military bases, important transportation hubs, etc. Its rugged design and excellent waterproof performance make it an ideal choice for various complex environments.

TECHNICAL PARAMETERS:

This anti-terrorism roadblock power unit provides users with an efficient and stable solution with its compact integrated design, reliable oil-immersed motor, excellent waterproof ability and rapid response mechanism. Whether it is a new project or equipment upgrade, it can significantly improve the performance and safety of the system and meet the needs of users in various complex environments.

SPECIAL NOTES

The power unit is an S3 working system and can not operate continuously. It starts in 10 seconds and stops in 90 seconds.

Before installation, ensure that hydraulic components such as the oil cylinder, oil pipe, and joint are free of impurities.

The viscosity of hydraulic oil shall be 15- 68 st. No.46 anti-wear hydraulic oil is recommended in summer, and No.32 low-temperature hydraulic oil is recommended in winter.

After starting the operating system for the first time, check whether the oil in the oil tank is sufficient, generally 2 / 3 of the oil tank.

After the system is used for the first 100 hours, the hydraulic oil shall be replaced, and then the hydraulic oil shall be replaced every 3000 hours.

SCHEMATIC DIAGRAM

SPECIFICATIONS

Note: if you need system parameters such as pump, pressure and motor power with different flow, please contact our salesman.
