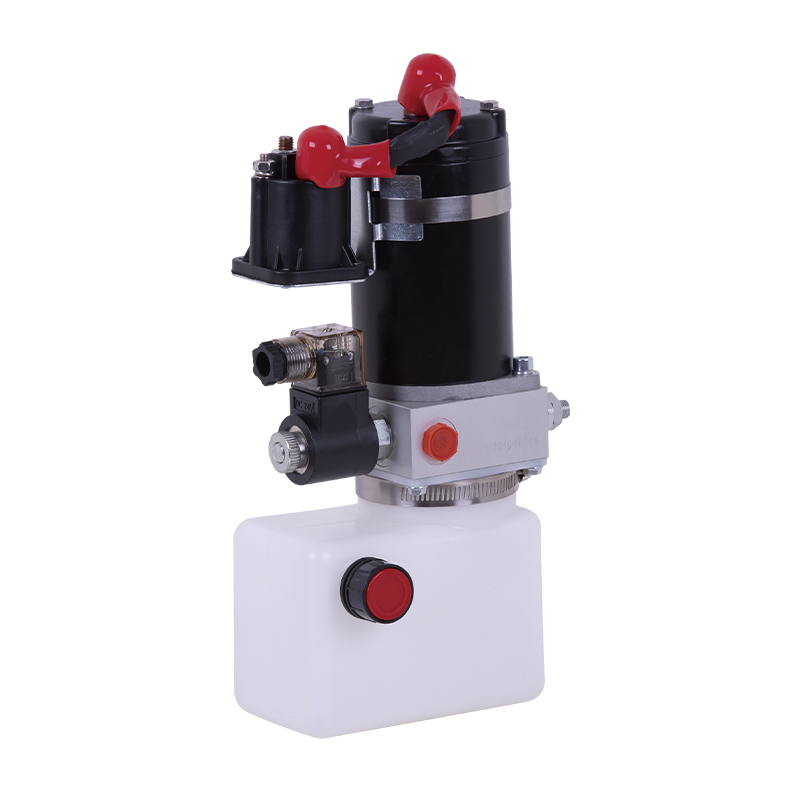

This hydraulic power unit is specially designed for all electric pallet truck.It consists of high voltage gear pump,permanent magnet DC motor and central valve block. The cartridge valve and oil tank are integrated. Start the motor to rise, open the solenoid valve to fal. The built-in pressure compensation throttle valve controls the descent speed. With 0.3-0.8kw optional motor,12-48v optional voltage, iron and plastic oil tank for choice.
DETAILED INTRODUCTION

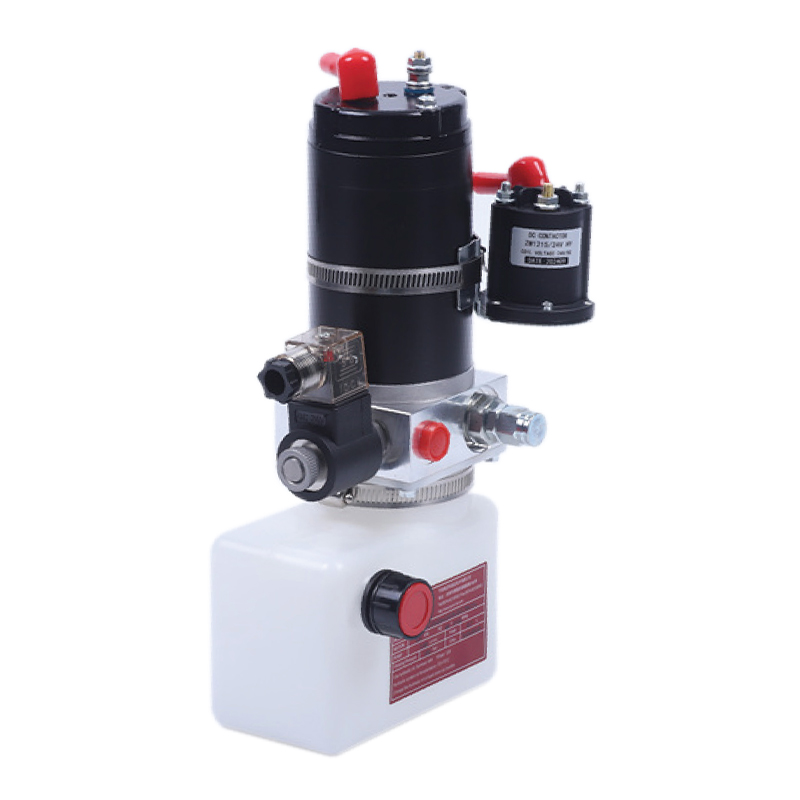

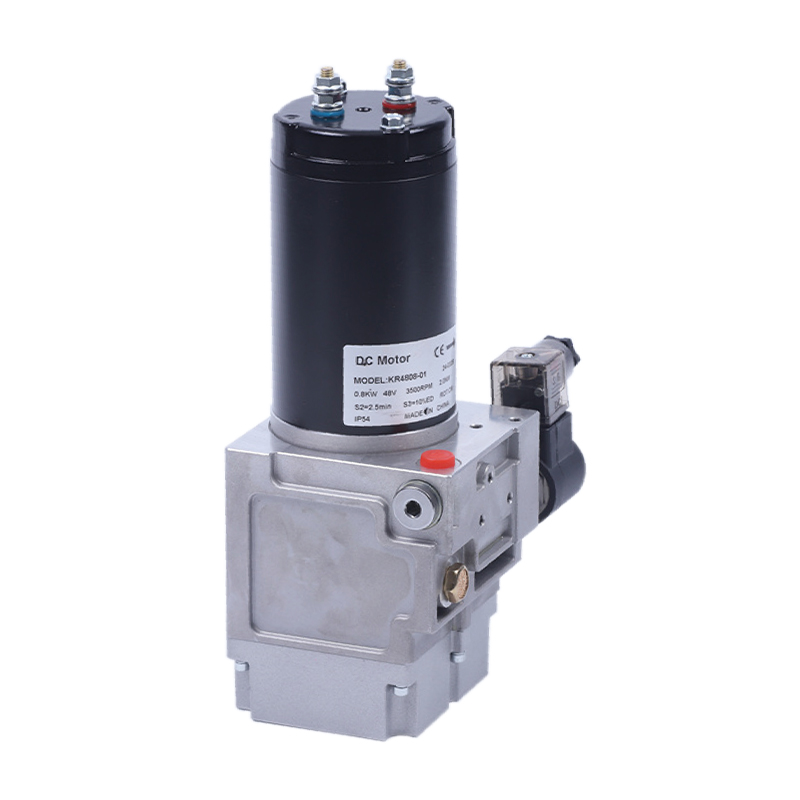

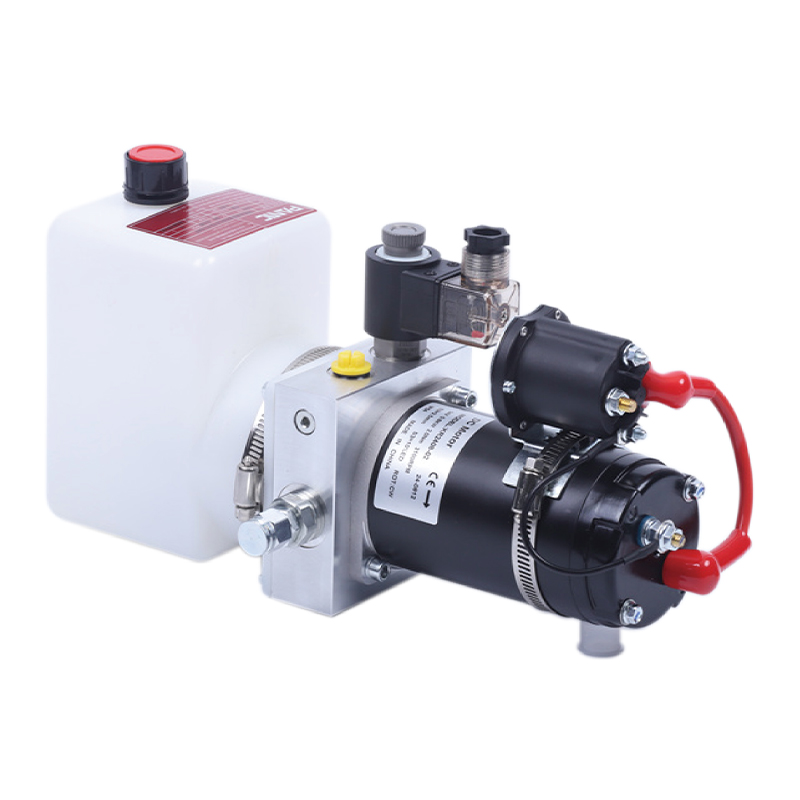

This mini pallet truck hydraulic power unit consists of a high-pressure size pump, a permanent magnet DC motor, a solenoid valve and a center block. There are multiple installation methods such as vertical, horizontal and side installation, which can meet the installation of various small electric night trucks. The motor voltage and power can be customized according to customer requirements.
The forklift electric drive motor power unit supplies oil to the cylinder through a high-pressure oil pipe, and the cylinder rises. The motor is powered off and the solenoid valve is powered on. The cylinder descends. The speed of descent can be equipped with flow valves of different flow rates according to customer requirements.
The permanent magnet drive motor of this mini pallet truck hydraulic power unit has high efficiency, less heat, and low risk of failure. It can continuously and stably output power and adapt to high-intensity operations.
The aluminum alloy hydraulic power unit of this product is small in size, light in weight, easy to install and maintain, and has a low noise in the top-mounted design.
SPECIAL NOTES
The power unit is an S3 working system and can not operate continuously. It starts in 10 seconds and stops in 90 seconds.
Before installation, ensure that hydraulic components such as the oil cylinder, oil pipe, and joint are free of impurities.
The viscosity of hydraulic oil shall be 15-68st. No.46 anti-wear hydraulic oil is recommended in summer, and No.32 low-temperature hydraulic oil is recommended in winter.
After starting the operating system for the first time, check whether the oil in the oil tank is sufficient, generally 2 / 3 of the oil tank.
After the system is used for the first 100 hours, the hydraulic oil shall be replaced, and then the hydraulic oil shall be replaced every 3000 hours.
SCHEMATIC DIAGRAM
SPECIFICATIONS
(Mini Pallet Truck Hydraulic Power Unit 1)
| Model | Volt | Power | Speed | Displacement | Pressure | Tank | Solenoid Valve Voltage |
| PNC-O.8-D24-0.5/0.65-18-0.7/W-Y2 | 24VDC | 0.8KW | 3400RPM | 0.65CC/REV | 18MPA | 0.7L | 24VDC |
| PNC-0.8-D48-0.5/0.65-18-0.7/W-Y2 | 48VDC | 3100RPM | 48VDC |
(Mini Pallet Truck Hydraulic Power Unit 2)
| Model | Volt | Power | Speed | Displacement | Pressure | Tank | Solenoid Valve Voltage |
| PNC-0.8-D24-0.5/1.0-13-0.7/W-Y2 | 24VDC | 0.8KW | 3400RPM | 0 . 65CC/REV | 13MPA | 0 .7L | 24VDC |
| PNC-0.8-D48-0.5/0.65-13-0.7/W-Y2 | 48VDC | 3100RPM | 1 . oCC/REV | 48VDC |
(Mini Pallet Truck Hydraulic Power Unit 3)
| Model | Volt | Power | Speed | Displacement | Pressure | Tank | Solenoid Valve Voltage |
| PNC-0.8-D24-0.5/0.38-23-0.5/W-Y2 | 24VDC | 0.8KW | 3400RPM | 0.38CC/REV | 23MPA | 0.5L | 24VDC |
| PNC-0.8-D48-0.5/0.38-23-0.5/W-Y2 | 48VDC | 3100RPM | 48VDC |
(Mini Pallet Truck Hydraulic Power Unit 4)
| Model | Volt | Power | Speed | Displacement | Pressure | Tank | Solenoid Valve Voltage |
| PNC-0.8-D24-0.5/0.38-23-0.4/W-Y2 | 24VDC | 0.8KW | 3400RPM | 0.38CC/REV | 23MPA | 0.4L | 24VDC |
| PNC-0.8-D48-0.5/0.38-23-0.4/W-Y2 | 48VDC | 3100RPM | 48VDC |
(Mini Pallet Truck Hydraulic Power Unit 5)
| Model | Volt | Power | Speed | Displacement | Pressure | Tank | Solenoid Valve Voltage |
| PNC-0.8-D24-0.5/0.65-16-1.5/L-Y2 | 24VDC | 0.8KW | 3400RPM | 0.65CC/REV | 16MPA | 1.5L | 24VDC |
| PNC-1.2-D24-0.5/0.88-16-1.5/L-Y2 | 1.2KW | 3800RPM | 0.88CC/REV | ||||
| PNC-0.8-D48-0.5/0.65-16-1.5/L-Y2 | 48VDC | 0.8KW | 3100RPM | 0.65CC/REV | 48VDC |
Note: if you need system parameters such as pump, pressure and motor power with different flow, please contact our salesman.
